Self-service Kiosks

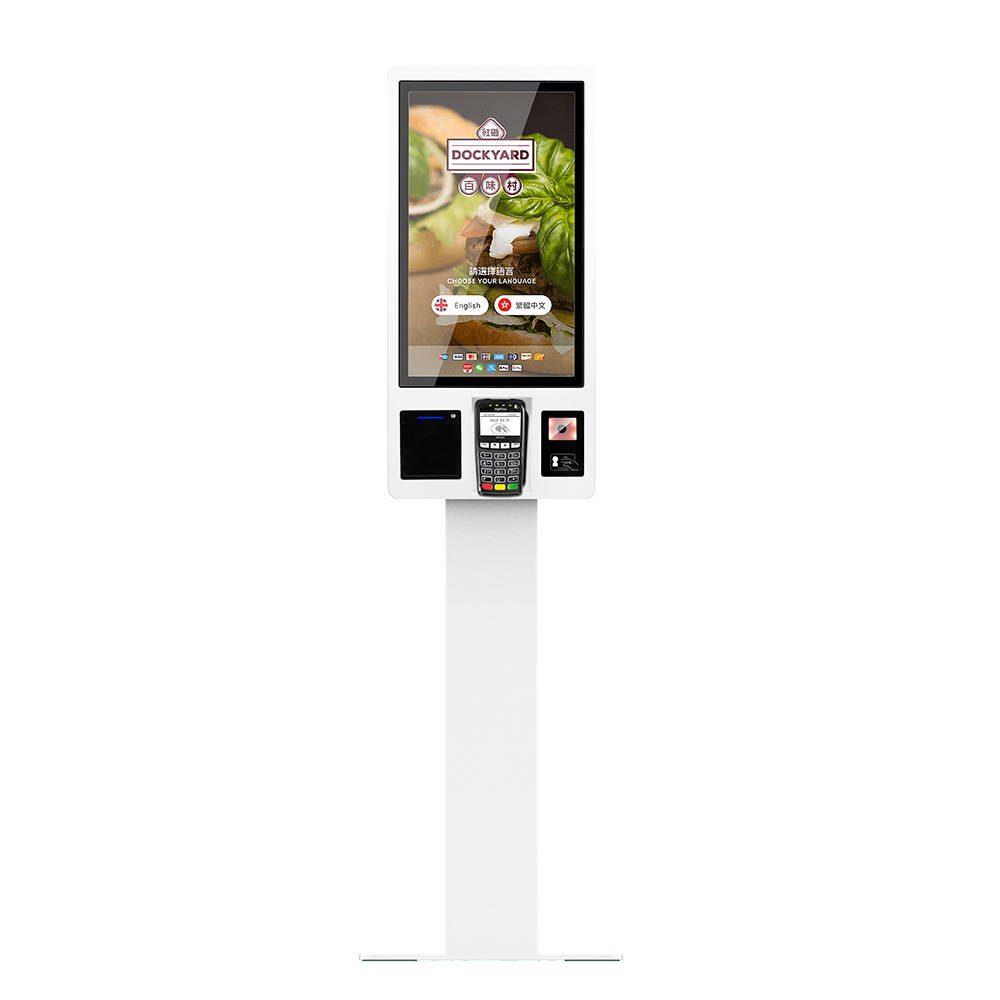

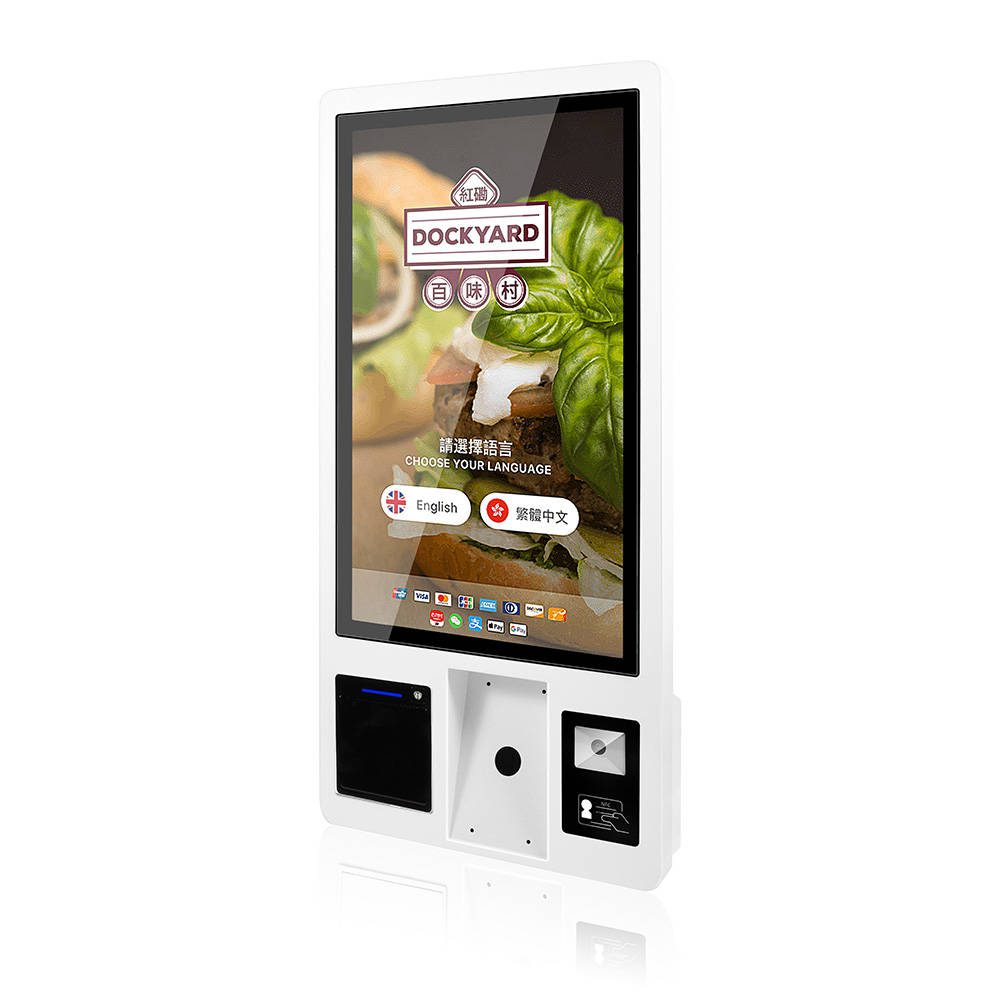

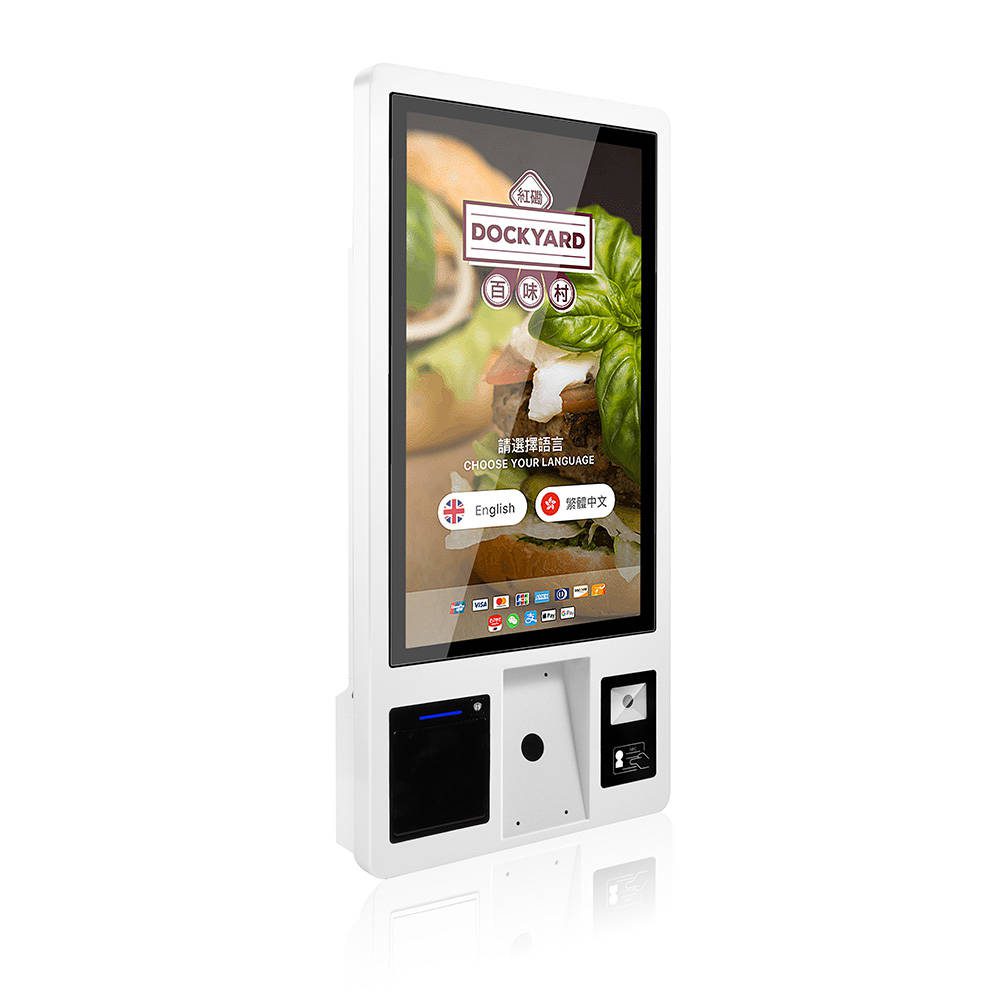

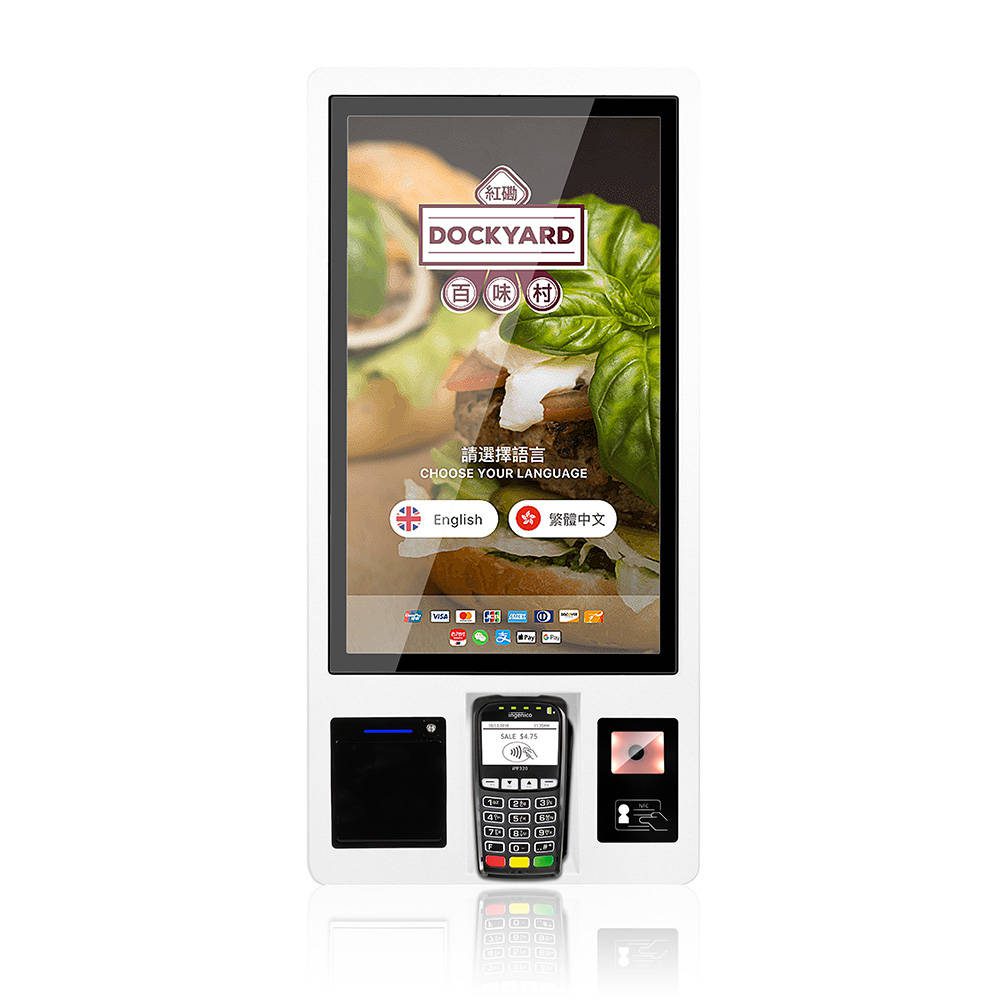

23.8 inch PACP Touchscreen Self-ordering Kiosk

1. 23.8″Full HD PCAP Touchscreen
2. Modularized design allows for easy upgrades and function expansion
3. Windows and Android OS Supported
4. 1D 2D QR code scanner
5. 80mm thermal printer
6. Various Options(NFC,Camera,4G,POS machine bracket)
7. Multiple mounting options for easy installation (Floor/Wall)
8. Provide SDK for Secondary development, Drivers, development code, Development materials are complete
9. Customizable (Supporting OEM/ODM Inquires)

    MOQ: 1 SET
    Lead time: 12 days(1-5 sets)



  • Specification:
  • Detalle del producto
Display Screen 24 inch IPS screen
Resolution 1920×1080
Brightness 250cd/m²
Contrast 1000:1
Screen scale 16:9
Display area 527.04mm×296.46mm
Android
Configuration
(Standard)
CPU Rockchip RK3568 Cotex-A55×4, clocked 2.0GHz
RAM 2GB(4G /8G optional)
ROM 16GB  (32G/64G optional)
WIFI 802.11b/g/n
Bluetooth Bluetooth 4.2
3G/4G (optional) External  3G/4G module PCIE slot
System Android 11 system
I/O MIC-IN×1,RJ45×1,RS232×1,USB×4
PC
Configuration
(Optional)
processor Intel J1900 Quad Core/I3/I5/I7
Hard disk 64G SSD/128G SSD/256G SSD
Memory 4GB/8GB/16G
System Windows 10 inactive version
I/O HDMI×1,VGA×1,RJ45×1,USB×4,LINE-OUT×1,MIC-IN×1,RS232×1
Peripherals printer 80mm panel thermal printer
scanner QR code automatic scanning
Card reader (optional) NFC card reader/IC card reader
Camera (optional) Monocular camera/Binocular camer
POS machine bracket Built-in POS Machine Stand
Vertical bracket (optional) Metal
power supply Valtage Input:100V~240V AC,50~60Hz
Maximum power 120W
Standby power ≤1W
Estructura Shell Material Metal
Shell color White(Black optional)
Product Size (mm) (L×W×D) 404.6×839.5×104.6mm
Package Size (mm) (L×H× D) 940×530×260mm
Other parameters touch specification capacitive touch screen,Glass/Glass
Speaker 2×5W speakers
Operating temperature 0℃~50℃
Storage temperature -20℃~60℃
Operating humidity 10%~90%RH
Storage humidity 5%~90%RH
OSD language Chinese, English etc OSD operations
Attachment Power cable ×1
Wall mount bracket ×1
WIFI antenna ×1
User’s Manual ×1
Vertical stand (optional) ×1



Preliminary Ordering Information

Part No. Descripción
YS-SK24F-RK3568 2G+16G 24″ Pcap Touch Screen Android Self-ordering Kiosk, RK3568 2G+16G
YS-SK24F-RK3568 4G+32G 24″ Pcap Touch Screen Android Self-ordering Kiosk, RK3568 4G+32G
YS-SK24F-J1900 4G+64G 24″ Self-ordering Kiosk with Computer, J1900,4G+64G
YS-SK24F-I3 4G+64G 24″ Self-ordering Kiosk with Computer, I3 4005U-4010U,4G+64G
YS-SK24F-I5 4G+128G 24″ Self-ordering Kiosk with Computer, I5 6200U-6360U,4G+128G
