| Model | Parameter | |
| Processor | CPU | Intel 6/7/8/9th Generation CoreTM/Pentium®/Celeron® Desktop Processors LGA1151 |
| Chipset | Intel® H310C, TDP 6W | |
| BIOS | AMI UEFI BIOS | |
| Memory | Socket | Support DDR4-2400MHz,2×U-DIMM Slot |
| Max Capacity | Up to 32 GB | |
| Graphics | Controller | Intel® HD Graphics |
| Ethernet | Controller | 1×Intel I219-LM+1×Intel I225-V for 1000Mbps |
| Storage | SATA | 4×SATA 3.0 Port |
| MSATA | 1×mSATA | |
| Expansion Slots | PCIe | 1×PCI-E 16 X slot |
| 1×PCI-E 4X slot | ||
| 1×PCI-E 1X slot | ||
| Mini PCIe | 2×Mini PCI-E Slot (WIFI+4G), with 1×SIM Card | |
| PCI | 4×PCI slot | |
| GPIO | 8×GPIO | |
| Front I/O | Ethernet | 2×RJ45 |
| USB | 4×USB3.0(Type-A) | |
| 2×USB2.0(Type-A) | ||
| PS/2 | 1×PS/2(Keyboard & Mouse) | |
| Display | 1×VGA | |
| 1×DVI | ||
| 1×HDMI | ||
| Audio | 1×MIC + 1×Line-out + 1×Line-in | |
| Serial | 4×RS232 + 2×RS232/RS485 | |
| Rear I/O | USB | 2×USB2.0(Type-A) |
| Button | 1×Power Button, 1×Reset Button | |
| LED | 1×Power status LED, 1×Hard drive status LED | |
| OS Support | Windows | Windows 7/8/10 |
| Linux | Ubuntu | |
| Power Supply | Type | ATX |
| Power Input Voltage | AC power supply | |
| Environment | Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0~60℃ | |
| Storage Temperature | -20~75℃ | |
| Mechanical | Enclosure Material | SGCC |
| Shell color | Industrial Grey | |
| Dimensions | 508.9mm(L) ×482mm(W) ×177mm(H) | |
| Mounting | Shelf mounted installation |
Preliminary Ordering Information
| Part No. | Description |

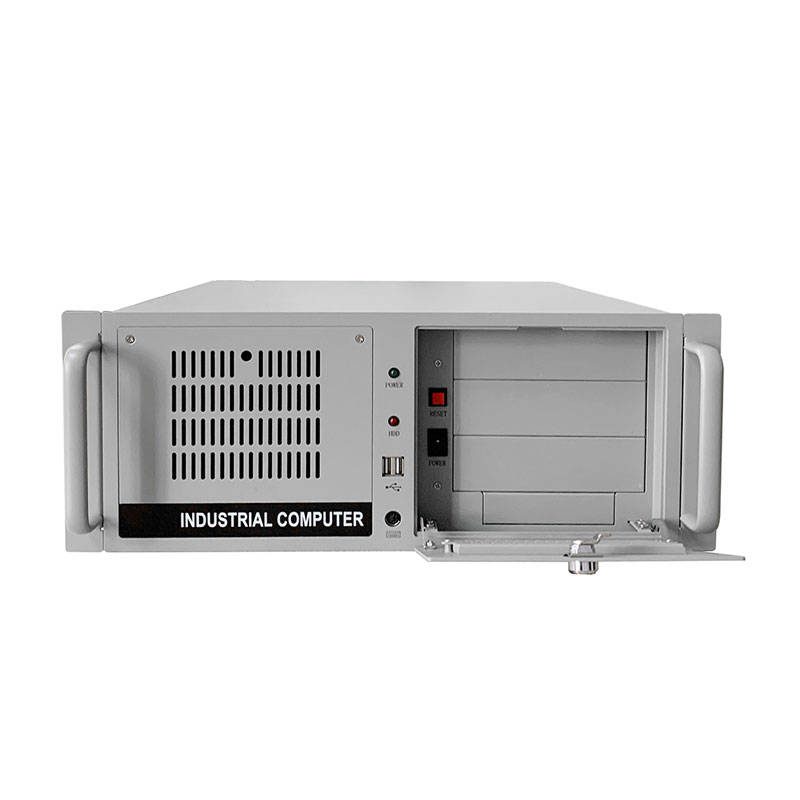

| IPC400-H310C | 4U Rackmount Industrial PC, Intel 6/7/8/9th Generation CoreTM/Pentium®/Celeron® Desktop Processors LGA1151 |
| IPC400-Q470 | 4U Rackmount Industrial PC, Support Intel® 10/11th Generation Core/Pentium/ Celeron Desktop CPU |
| IPC400-Q670 | 4U Rackmount Industrial PC, Support Intel® 12/13th Generation Core/Pentium/ Celeron Desktop CPU |
